HDB3WHL Serisi

4,5kA B ve C Eğrisi Otomatik Sigortalar

/assets/listings/urunler/whl-2-png-image-13649.webp
/assets/listings/urunler/whl-1-png-image-38996.webp
/assets/listings/urunler/whl-png-image-90351.webp
Teknik Dökuman indir

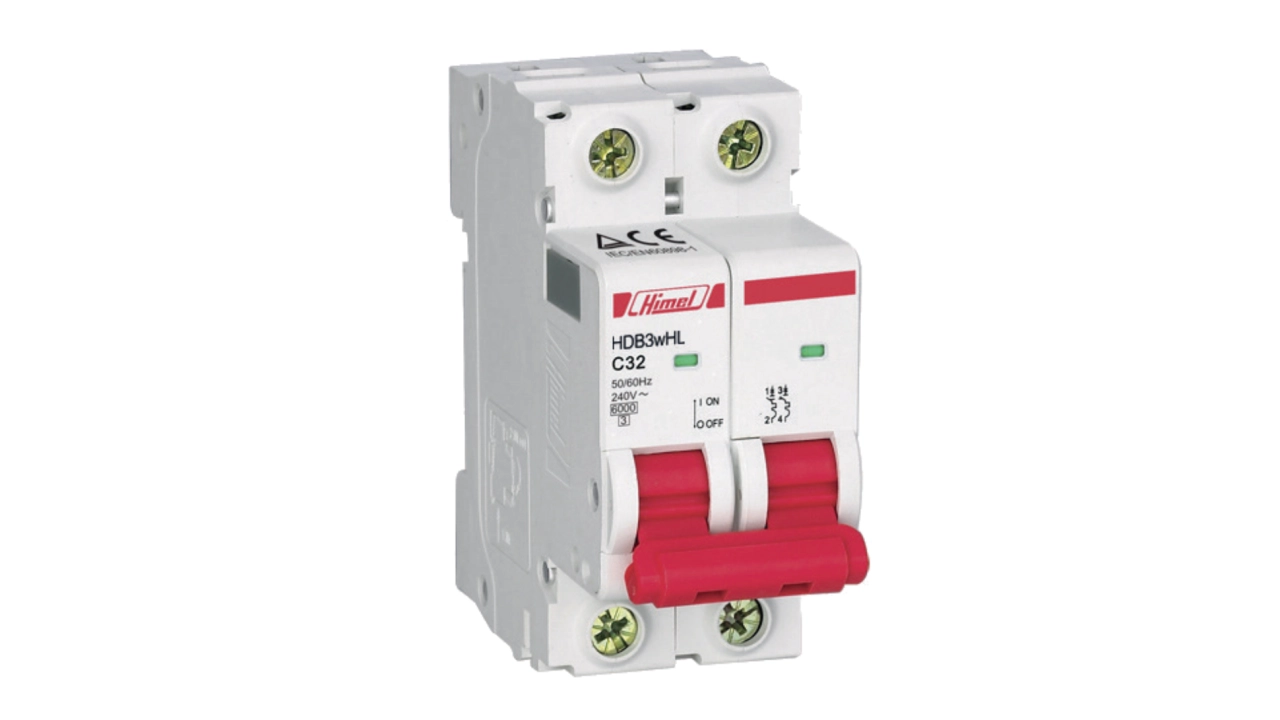

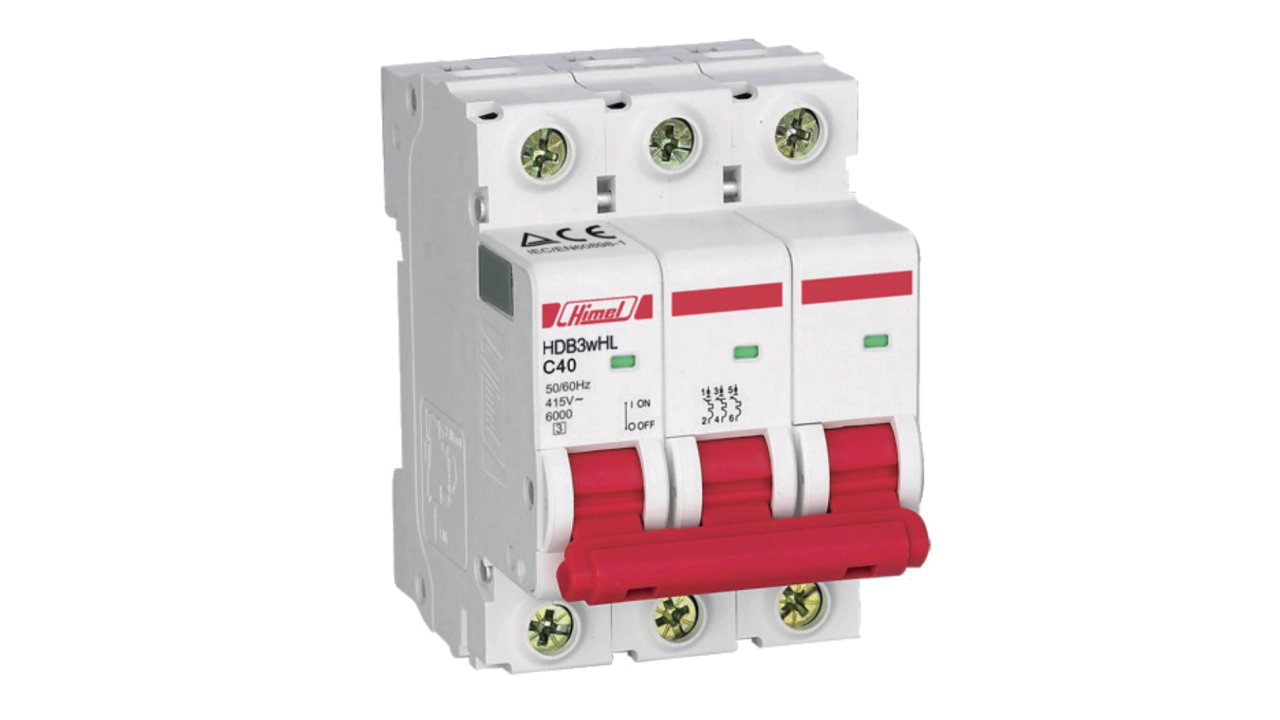

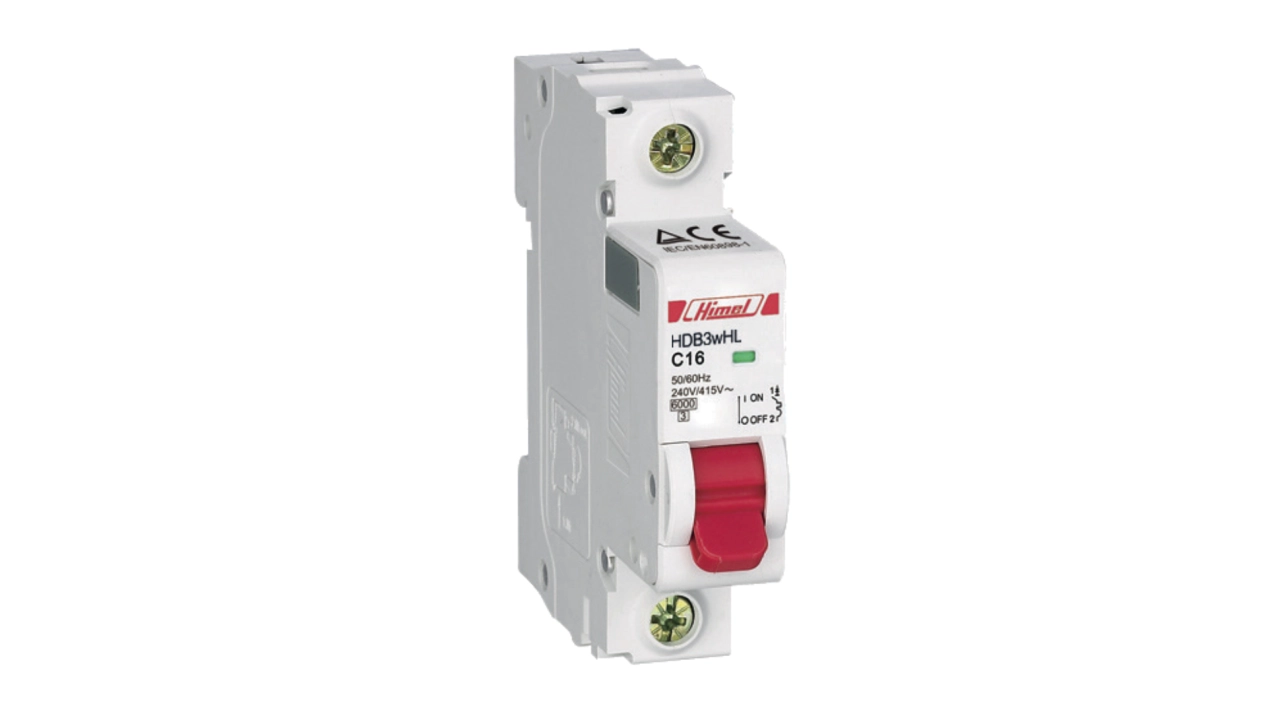

HDB3WHL Serisi 4,5kA B ve C Eğrisi Otomatik Sigortalar

Otomatik Sigorta (MCB) Referans Tablosu

Kutup Sayısı Anma Akımı (A) B Eğrisi Referans Kodu C Eğrisi Referans Kodu
1 Kutup 1A HDB3WHL1B1 HDB3WHL1C1
1 Kutup 2A HDB3WHL1B2 HDB3WHL1C2
1 Kutup 3A HDB3WHL1B3 HDB3WHL1C3
1 Kutup 4A HDB3WHL1B4 HDB3WHL1C4
1 Kutup 6A HDB3WHL1B6 HDB3WHL1C6
1 Kutup 10A HDB3WHL1B10 HDB3WHL1C10
1 Kutup 16A HDB3WHL1B16 HDB3WHL1C16
1 Kutup 20A HDB3WHL1B20 HDB3WHL1C20
1 Kutup 25A HDB3WHL1B25 HDB3WHL1C25
1 Kutup 32A HDB3WHL1B32 HDB3WHL1C32
1 Kutup 40A HDB3WHL1B40 HDB3WHL1C40
1 Kutup 50A HDB3WHL1B50 HDB3WHL1C50
1 Kutup 63A HDB3WHL1B63 HDB3WHL1C63
2 Kutup 2A HDB3WHL2B2 HDB3WHL2C2
2 Kutup 3A HDB3WHL2B3 HDB3WHL2C3
2 Kutup 6A HDB3WHL2B6 HDB3WHL2C6
2 Kutup 10A HDB3WHL2B10 HDB3WHL2C10
2 Kutup 16A HDB3WHL2B16 HDB3WHL2C16
2 Kutup 20A HDB3WHL2B20 HDB3WHL2C20
2 Kutup 25A HDB3WHL2B25 HDB3WHL2C25
2 Kutup 32A HDB3WHL2B32 HDB3WHL2C32
2 Kutup 40A HDB3WHL2B40 HDB3WHL2C40
2 Kutup 50A HDB3WHL2B50 HDB3WHL2C50
2 Kutup 63A HDB3WHL2B63 HDB3WHL2C63
3 Kutup 2A HDB3WHL3B2 HDB3WHL3C2
3 Kutup 3A HDB3WHL3B3 HDB3WHL3C3
3 Kutup 6A HDB3WHL3B6 HDB3WHL3C6
3 Kutup 10A HDB3WHL3B10 HDB3WHL3C10
3 Kutup 16A HDB3WHL3B16 HDB3WHL3C16
3 Kutup 20A HDB3WHL3B20 HDB3WHL3C20
3 Kutup 25A HDB3WHL3B25 HDB3WHL3C25
3 Kutup 32A HDB3WHL3B32 HDB3WHL3C32
3 Kutup 40A HDB3WHL3B40 HDB3WHL3C40
3 Kutup 50A HDB3WHL3B50 HDB3WHL3C50
3 Kutup 63A HDB3WHL3B63 HDB3WHL3C63
4 Kutup 2A HDB3WHL4B2 HDB3WHL4C2
4 Kutup 3A HDB3WHL4B3 HDB3WHL4C3
4 Kutup 6A HDB3WHL4B6 HDB3WHL4C6
4 Kutup 10A HDB3WHL4B10 HDB3WHL4C10
4 Kutup 16A HDB3WHL4B16 HDB3WHL4C16
4 Kutup 20A HDB3WHL4B20 HDB3WHL4C20
4 Kutup 25A HDB3WHL4B25 HDB3WHL4C25
4 Kutup 32A HDB3WHL4B32 HDB3WHL4C32
4 Kutup 40A HDB3WHL4B40 HDB3WHL4C40
4 Kutup 50A HDB3WHL4B50 HDB3WHL4C50
4 Kutup 63A HDB3WHL4B63 HDB3WHL4C63

Tablo Açıklaması:

  • Kutup Sayısı:

    • 1 Kutup: Tek fazlı devreler için (Faz + Nötr bağımsız).

    • 2 Kutup: Çift kutuplu (Faz + Nötr birlikte kesme).

    • 3 Kutup: Üç fazlı sistemler (3 Faz).

    • 4 Kutup: Üç faz + Nötr (3F+N).

  • Anma Akımı (A): 1A’den 63A’e kadar farklı akım değerleri.

  • B Eğrisi: Genel kullanım (termik-manyetik koruma, yüksek hassasiyet).

  • C Eğrisi: Motor, kompresör gibi yüksek başlangıç akımlı cihazlar için.
